Problems & Solution Considerations For Converging Conveyor Packaging

Frequently there is a need to bring packaging together from more than one conveyor system.

For example, there may be more than one segment of operations with different size packaging coming together and headed for the shipping area.

The packages may be of different sizes and of course weight.

There could be a problem with the various packages slamming into each other and disturbing the desired alignment or possibly packaging damage.

indexing conveyor

Drop down box indexer

A common solution to this is the individual indexing of packages according to the time and space provided.

Location, detection and apparatus activation is commonly the function of well placed photo eyes.

A properly sized indexing conveyor may drop down to provide momentary path obstruction to allow other packaging to proceed in front of it.

Placing of the photo eyes and the timing sequence is of course critical to proper indexing.

Additionally, if boxes should congest behind each other on the indexer, the belting or rollers should provide for little or no friction buildup, or damage to the packaging.

Belting with built in rollers is frequently used where heavy packaging is involved as a solution for this when necessary.

When progression is allowed, a speed-up transition is an excellent solution to provide desired spacing as packaging merges on to belting from an indexer.

Variable speed operation of the various converging conveyors is obviously required to tune the appropriate and desired package positioning.

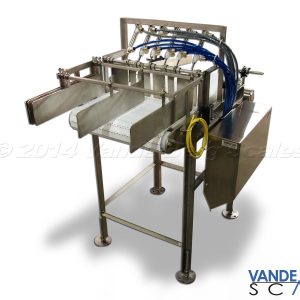

merging conveyors

Two Box Indexers before a Merging/Converging Conveyor

One must be conscious to insure proper alignment of components following any corrective or cleaning actions.

Structural durability should also be a strong consideration when indexing conveyor additions are introduced.

The need may exist for equipment of greater capacity to accomplish the efficiencies desired.

Preventive care is prudent for all areas of converging packages.

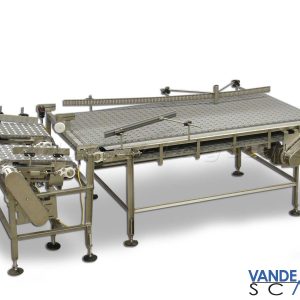

Box Converging Merging Conveyor
